GitHub has been evolving rapidly in the last few years. With the introduction of GitHub Actions and GitHub Packages, your continuous integration (CI) pipelines can be entirely implemented without leaving GitHub, reducing context switching and increasing productivity for engineers. In this post, we will work through setting up pipelines for a Docker based project including pull request (PR) validation, CI, publishing of CI images and publishing of release images, all in GitHub. Let’s get started!

Application

Firstly, we need something to actually build. For simplicity, let’s do the standard Node.js Express server, but it could be any programming lanuage or framework, because we are building in Docker.

So we have the following files for our application:

Package.json:

{
  "name": "docker_web_app",
  "version": "1.0.0",
  "description": "Node.js on Docker",
  "author": "First Last <first.last@example.com>",
  "main": "server.js",
  "scripts": {
    "start": "node server.js"
  },
  "dependencies": {
    "express": "^4.16.1"
  }
}

server.js:

'use strict';

const express = require('express');

// Constants
const PORT = 8080;
const HOST = '0.0.0.0';

// App
const app = express();
app.get('/', (req, res) => {
  res.send('Hello World');
});

app.listen(PORT, HOST);
console.log(`Running on http://${HOST}:${PORT}`);

Dockerfile:

FROM node:12

# Create app directory
WORKDIR /usr/src/app

# Install app dependencies
# A wildcard is used to ensure both package.json AND package-lock.json are copied
# where available (npm@5+)
COPY package*.json ./

RUN npm install
# If you are building your code for production
# RUN npm ci --only=production

# Bundle app source
COPY . .

EXPOSE 8080
CMD [ "node", "server.js" ]

.dockerignore:

node_modules
npm-debug.log

Now that we have something to build, let’s build it!

GitHub Actions

You could follow the GitHub Docs to learn how to create an Action for your needs. However, I find that it often lags behind the real world with legacy actions and is generally confusing. I find it is faster to let GitHub recommend you an Action, and build from there. For instance, once you have your code commited to a repository, go to the Actions tab and you will see a number of Actions that GitHub recommends that could be useful for you:

In this case, the Publish Docker Container action is the one that I want and I can simply click Set up this workflow. From there, I am met with a screen that shows the contents of the Action via a YAML file:

name: Docker

on:
  push:
    # Publish `main` as Docker `latest` image.
    branches:
      - main

    # Publish `v1.2.3` tags as releases.
    tags:
      - v*

  # Run tests for any PRs.
  pull_request:

env:
  # TODO: Change variable to your image's name.
  IMAGE_NAME: image

jobs:
  # Run tests.
  # See also https://docs.docker.com/docker-hub/builds/automated-testing/
  test:
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v2

      - name: Run tests
        run: |
          if [ -f docker-compose.test.yml ]; then
            docker-compose --file docker-compose.test.yml build
            docker-compose --file docker-compose.test.yml run sut
          else
            docker build . --file Dockerfile
          fi

  # Push image to GitHub Packages.
  # See also https://docs.docker.com/docker-hub/builds/
  push:
    # Ensure test job passes before pushing image.
    needs: test

    runs-on: ubuntu-latest
    if: github.event_name == 'push'

    steps:
      - uses: actions/checkout@v2

      - name: Build image
        run: docker build . --file Dockerfile --tag $IMAGE_NAME

      - name: Log into registry
        run: echo "${{ secrets.GITHUB_TOKEN }}" | docker login docker.pkg.github.com -u ${{ github.actor }} --password-stdin

      - name: Push image
        run: |
          IMAGE_ID=docker.pkg.github.com/${{ github.repository }}/$IMAGE_NAME

          # Change all uppercase to lowercase
          IMAGE_ID=$(echo $IMAGE_ID | tr '[A-Z]' '[a-z]')

          # Strip git ref prefix from version
          VERSION=$(echo "${{ github.ref }}" | sed -e 's,.*/\(.*\),\1,')

          # Strip "v" prefix from tag name
          [[ "${{ github.ref }}" == "refs/tags/"* ]] && VERSION=$(echo $VERSION | sed -e 's/^v//')

          # Use Docker `latest` tag convention
          [ "$VERSION" == "main" ] && VERSION=latest

          echo IMAGE_ID=$IMAGE_ID
          echo VERSION=$VERSION

          docker tag $IMAGE_NAME $IMAGE_ID:$VERSION
          docker push $IMAGE_ID:$VERSION

This Action is doing the following things:

• It’s running on pushes to the main branch, when any tags matching v* are pushed, and on all pull requests
• It’s running a test step. Although I don’t have any tests yet, this would be obviously needed for a production application
• It’s running a push step, where the image is either tagged with “latest” if it is coming from the main branch, or v* if from a tag

This is great, it’s exactly what I was intending and I didn’t have to write any YAML! That’s why it’s always good to start with the recommended Actions as they will give you idiomatic, conventional, up-to-date Actions for your project for free.

PR Validation

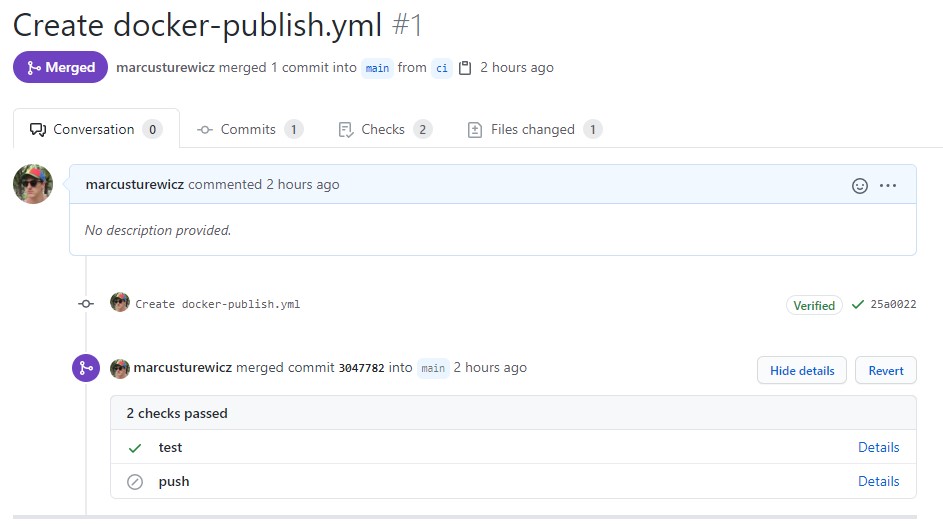

Once you have reviewed your Action, you can push it to a new branch and create a pull request. You can see on my pull request that the Action was triggered, and only the test check ran:

Great, now what happens when this is merged into main?

CI

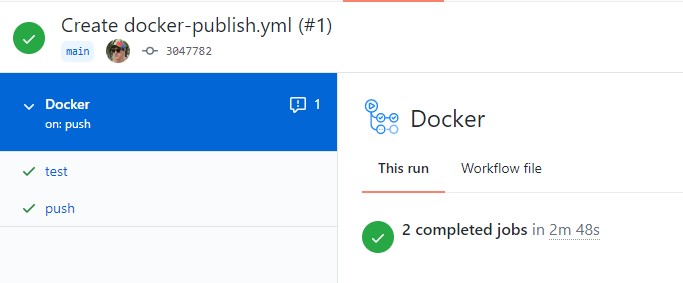

After the PR was merged, the Action was again triggered, running the test and push steps:

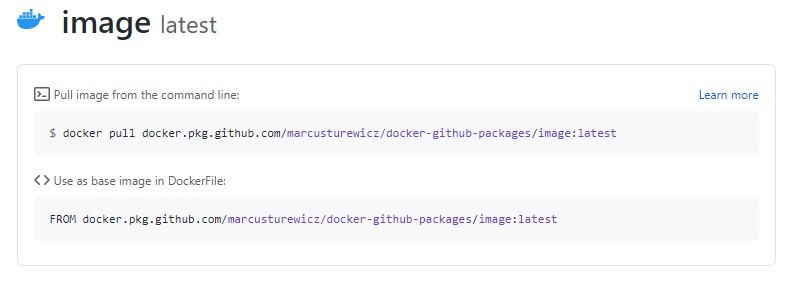

A CI image was also created and tagged with latest in GitHub Packages:

Great, now what happens when a tag is created?

Release

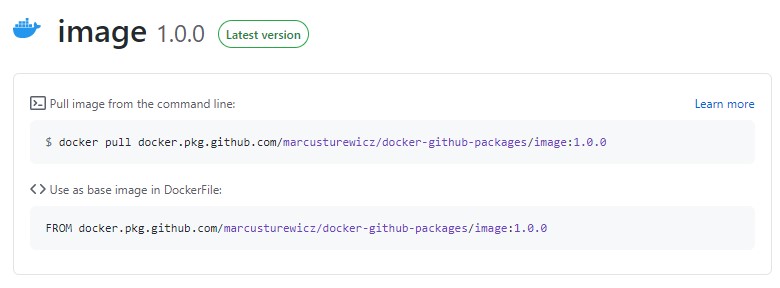

I created a release with tag v1.0.0 against the main branch. This again triggered the Action and now a release image with tag 1.0.0 was created in GitHub Packages:

Summary

In this post, we took an existing Dockerised application and added PR validation, CI, CI builds and release builds, all within GitHub. We used the recommended Action to do all of this without writing any YAML, whilst having an idiomatic pipeline and staying up-to-date. I would definitely recommend GitHub Actions and GitHub Packages for PR Validation and CI. Depending on your organisation’s needs and IP requirements, you may consider publishing you release images to Docker Hub if they are to be consumed publicly, otherwise GitHub Packages will work nicely for internal or authenticated usage of Docker images.
